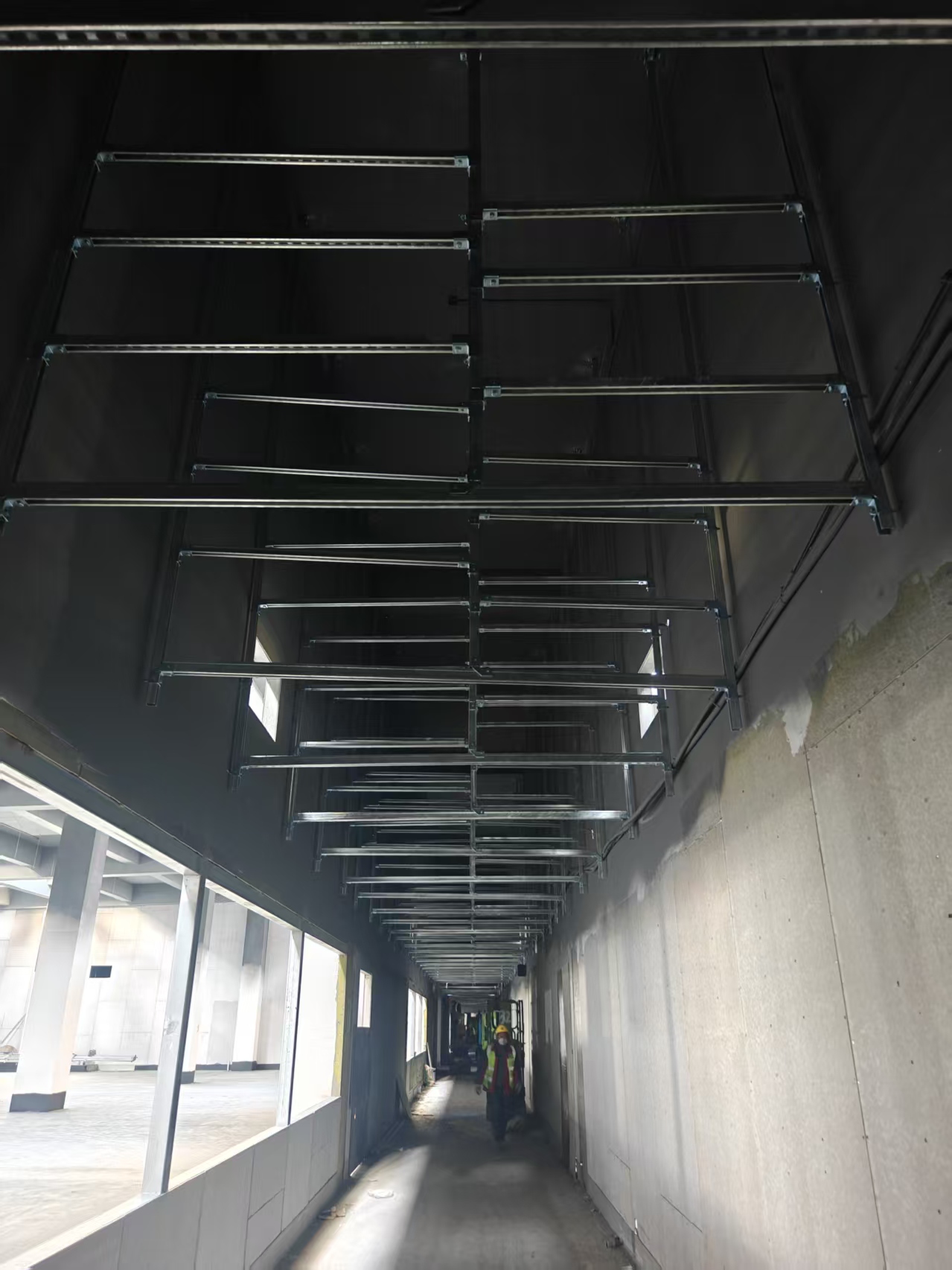

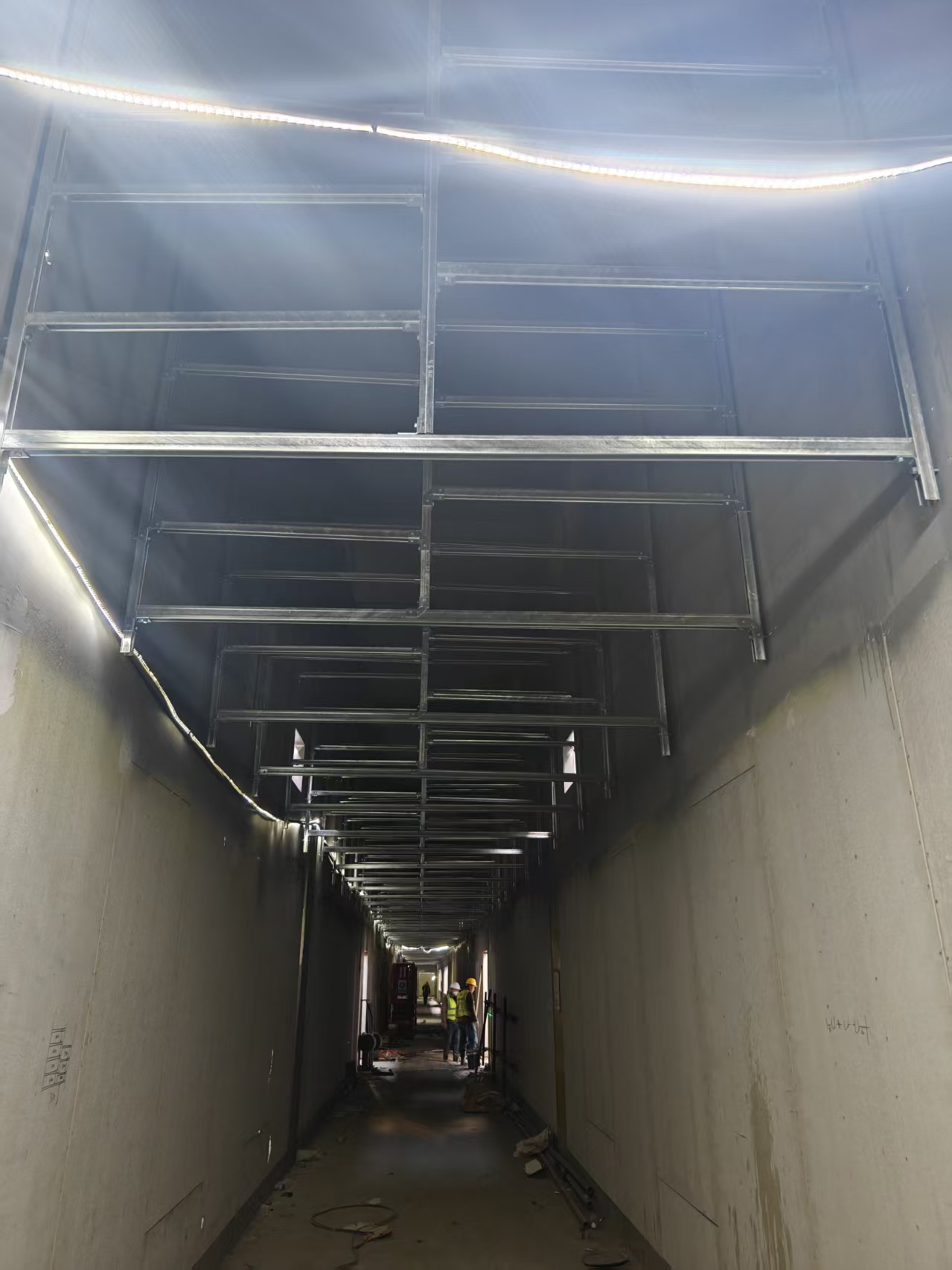

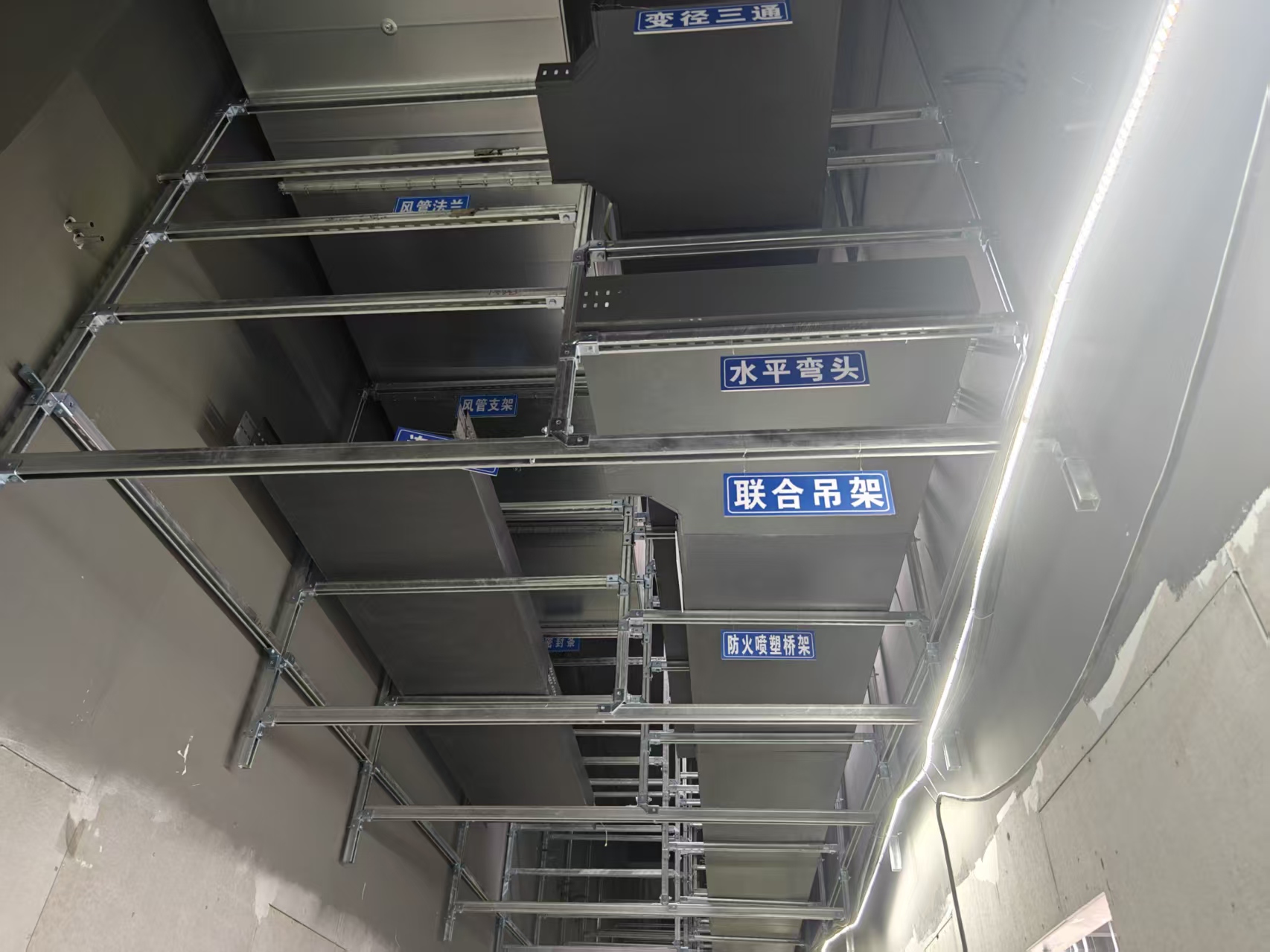

Carry out unified deep design and integrated installation of comprehensive supports and hangers for multi-disciplinary pipelines such as electrical cable trays, HVAC air ducts, fire protection pipes and low-voltage trunking inside data centers.C-section steel profiles are used to mount pipelines of multiple disciplines on a single load-bearing structure, solving the problems of dense overhead pipelines and insufficient space in computer rooms.

Construction Standards:
Execution Standard: T/CECS 1637-2024 Technical Specification for Comprehensive Supports and Hangers in Data Centers
Seismic verification is mandatory for areas with seismic intensity of 6 to 8 degrees
All components shall be mechanically connected; welding is strictly prohibited (welding will damage the galvanized layer and cause dimensional deviation)
The bearing capacity of anchor bolts for connections with concrete structures shall be designed to avoid damaging the bearing capacity of building structures
